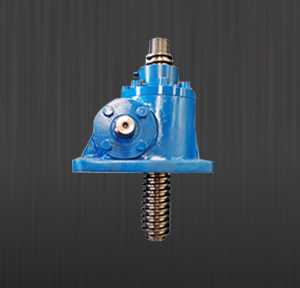

Worm and worm wheel jacks performs moving up/down and forward by worm driving. It’s widely used in field of machinery, architecture, chemistry etc. The lifer has advantages of compact structure, small size, easy installation, good reliability, high stability and long life-span. It has self locking. The maximum loading capability is 2.5 to 35 ton and the maximum input RPM is 1500r/m. The environment working temperature is between -20℃ and 100℃.
Type and Earmark

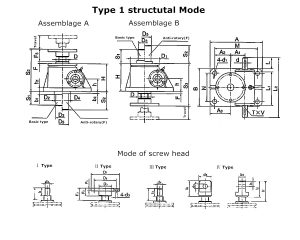

Type–1 Screw spins and rotate axially at the same time

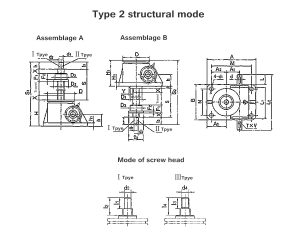

Type–2 Screw spins while nut on Screws rotating axially
There are 2 assemblage modes available for each of elevator structural mode;
Type A–Screw (or nut) moves upwards (see Figure 1 and Figure 2);
Type A–Screw (or nut) moves downwards (see Figure 1 and Figure 2);
Screw head mode
—There are 4 type available for the head of screw with Type 2 structural mode; Type Ⅰ (cylinder mode) Type Ⅱ (flange mode) Type Ⅲ (thread mode) Type Ⅳ (flat head mode)
—There are 2 type available for the head of screw with Type Ⅰ (cylinder mode) Type Ⅲ (thread mode)
There are 2 drive rations available for elevator : common ratio(P) and slow-speed ratio(M)

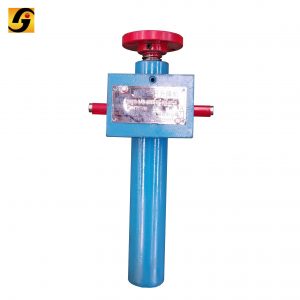

The protection of the type 1 screw jack screw is divided into: basic type, anti-rotation type (F) and type with protective cover (Z).
The protection of the type 2 screw jack screw is divided into: basic type and protective cover type (Z).
